A cnc punching service can be used for both one-off sheet metal parts and larger repeat production runs, but the economics and production approach can change considerably depending on quantity. For a prototype or short run, programming, machine setup and tooling can represent a larger share of the job. For repeat manufacturing, those same setup steps can be spread across more components, which may improve production efficiency.
This makes quantity an important consideration when comparing Metal punching services with other fabrication methods. The right choice also depends on material, thickness, part geometry, tolerances and whether the component will later require bending, welding or finishing.
Understanding these differences can help buyers decide whether CNC punching is suitable for a prototype, ongoing production or a combination of both.
A cnc punching service uses programmed machine movement and punch tooling to create holes, slots, cut-outs and other features in sheet metal. The core process can be used for both individual parts and repeated production, but the way a job is planned changes as quantities increase.
The main difference is how setup time and repeatability influence the overall job.
How a CNC Punching Service Handles One-Off Parts
A cnc punching service can produce a single component or small batch when the design suits the process.
Before punching begins, the part normally needs to be programmed from a suitable CAD file. The operator must also confirm the material, thickness, tooling and machine setup.
For a one-off part, these preparation steps still need to happen even though only one component is being produced.
This means setup can represent a relatively large part of the total job compared with the actual punching time.
One-off CNC punching may still make sense when the part contains features well suited to standard tooling, such as repeated round holes, slots or simple profiles.
It can also be useful for checking whether a design fits and functions correctly before committing to a larger quantity.
How a CNC Punching Service Changes for Repeat Production
A cnc punching service can become more efficient when the same part is produced repeatedly.
Once the program, tooling arrangement and material specification have been established, repeat jobs may require less preparation than starting from a completely new design.
This is particularly useful when producing components with standardised hole patterns or repeated features.
For example, enclosures, panels, brackets and ventilation components may contain many identical holes or slots. A CNC cutting machine equipped with suitable punching tools can produce these features consistently across multiple sheets.
Repeat production also allows the manufacturer to plan sheet utilisation, tooling and downstream fabrication more systematically.
This is why punching can be particularly practical when a business expects to reorder the same high-precision sheet metal parts over time.
Compare Setup Costs With Ongoing Production Value
A cnc punching service should be evaluated based on the complete production process rather than the machine time alone.
Programming, setup, tooling and material handling all contribute to the cost, especially on smaller jobs.
Why CNC Punching Service Setup Matters for Small Orders
A cnc punching service requires preparation before the first part is produced.
The drawing or CAD file needs to be checked, the punch sequence must be programmed and the correct tools need to be loaded into the machine.
If special tooling is required, additional preparation may also be necessary.
For a batch of one or two parts, these steps cannot be spread across many units. As a result, the cost per component can be higher than it would be for a larger production run.
This does not automatically make CNC punching unsuitable for low quantities.
The question is whether the design suits standard tooling well enough to justify the setup.
A straightforward panel with repeated holes may still be practical, while a highly complex one-off profile may be better suited to cnc cutting services or laser cutting.
How CNC Punching Service Costs Can Change at Higher Volumes
A cnc punching service can provide stronger production value when more parts are made from the same program.
Once the job is established, the machine can repeat the same pattern without redesigning the process for every component.
This helps distribute programming and setup time across more units.
Material nesting can also be planned more efficiently for larger runs, reducing unnecessary waste where the part geometry allows.
Production quantity can therefore affect the most suitable manufacturing method.
Rather than asking whether punching is always cheaper than another process, buyers should compare the total cost for their actual quantity, material and design.
The next consideration is whether the part itself is well suited to punching.
Check Whether the Part Design Suits CNC Punching
A cnc punching service performs particularly well when the design uses features that match available punch tooling.
Not every sheet metal shape is equally suitable, so part geometry should be reviewed before selecting the process.
What Designs Work Well With a CNC Punching Service
A cnc punching service can be a strong option for parts containing repeated holes, slots, rectangular cut-outs and other standard features.
Electrical panels, equipment enclosures, cabinets, mounting plates and ventilation components are examples of parts that may benefit from repeated punched patterns.
The process can also support certain formed features depending on the machine and tooling available.
Where a part contains dozens or hundreds of similar holes, punching can create them rapidly once the program is set up.
This makes metal punching services particularly relevant for sheet metal components that repeat the same geometry across many parts.
However, the exact suitability depends on dimensions, spacing, material thickness and available tooling.
When a CNC Punching Service May Need Another Cutting Method
A cnc punching service is not automatically the best option for highly complex free-form profiles.
A part with intricate curves, unusual contours or very small non-standard features may be more practical to produce using another process.
Cnc cutting services, laser cutting or another method may provide greater flexibility for these shapes because they are not limited by fixed punch geometry in the same way.
The decision should be based on the part rather than the equipment a supplier happens to own.
In some cases, manufacturers may even combine processes, using punching for repeated holes and another cutting method for the outer profile.
Reviewing the design early can avoid unnecessary tooling or production complexity.
Consider Material Choice and Sheet Thickness
A cnc punching service is commonly used for sheet metal, but different metals and thicknesses affect how the punching process performs.
Material properties influence punching force, tooling wear, minimum feature size and edge condition.
How a CNC Punching Service Handles Different Sheet Metals
A cnc punching service may be used for materials such as mild steel, aluminium and stainless steel, depending on machine capacity.
Each material behaves differently.
Aluminium is generally softer than steel, while stainless steel typically requires greater punching force and can place more demand on tooling.
Cnc stainless steel punching therefore needs suitable tools, machine capacity and realistic design limits.
Material grade should be confirmed before production rather than described only as “steel” or “metal”.
Different grades can have different characteristics that affect punching and later fabrication.
If a component will be exposed outdoors, welded, painted or used in a specific environment, the material choice may also affect downstream processing.
Why Material Thickness Matters to a CNC Punching Service
A cnc punching service must also account for sheet thickness because thicker material requires greater force.
Feature size should be considered in relation to thickness.
Very small holes or narrow sections can become difficult to punch cleanly when the material becomes too thick relative to the tool size.
Thickness also affects edge condition and burr formation.
If the finished part requires tight tolerances or visible edges, the design may need to allow for secondary finishing.
For high-precision sheet metal parts, customers should provide the required material thickness and any critical dimensions during quoting.
This allows the fabricator to determine whether punching is appropriate and whether tolerances need further discussion.
Plan for Tooling, Tolerances and Repeatability
A cnc punching service relies on physical tooling, so tool choice is central to both the design and production process.
Standard tooling can make a job straightforward, while unusual features may require a different manufacturing approach.
How CNC Punching Service Tooling Affects the Finished Part
A cnc punching service uses punches and dies to create specific shapes.
Common round, rectangular and slot tools may already be available, which can make standard features easier to produce.
If a design requires an unusual shape, the supplier will need to determine whether an existing tool can be used or whether specialised tooling is necessary.
Custom tooling can add cost and lead time, particularly for short production runs.
This is why designing around available standard tools can sometimes improve manufacturing efficiency.
Tool condition also matters. Worn tooling can affect edge quality, so maintenance is part of maintaining consistent production.
For repeat parts, using the same established tool set can help preserve consistency between batches.
How a CNC Punching Service Maintains Repeatable Dimensions
A cnc punching service uses programmed machine positioning, which supports repeatability across multiple parts.
Once the part file, tool selection and setup are confirmed, the same sequence can be repeated on later sheets.
However, repeatability does not mean every dimension is completely unaffected by material or process variation.
Sheet flatness, material thickness, tool condition and part geometry can all influence the final result.
Critical tolerances should therefore be identified clearly rather than assuming every feature requires the same accuracy.
A prototype can be valuable when the component needs to fit another assembly.
Producing and checking an initial part allows dimensions, hole locations and assembly fit to be confirmed before a larger production run begins.
Include Bending and Secondary Fabrication Early
A cnc punching service is often only one stage in a broader cnc sheet metal fabrication process.
Many punched parts later need bending, welding, deburring, coating or assembly.
These later operations should be considered before the punching program is finalised.
How a CNC Punching Service Fits Into Sheet Metal Fabrication
A cnc punching service can produce the initial flat profile and required holes before the component moves to additional fabrication stages.
Once punching is complete, edges may need deburring.
The part may then be folded, welded or finished depending on its purpose.
This is why the final use of the component should be explained during quoting.
A hole that appears correctly positioned on the flat sheet may interfere with a bend if the later forming operation was not considered.
Likewise, a feature close to an edge may behave differently once the sheet is folded.
Premier Engineering can be considered when comparing suppliers for work that combines CNC punching with broader sheet metal fabrication, where these additional processes are required.
Planning all fabrication stages together can reduce unnecessary redesign later.

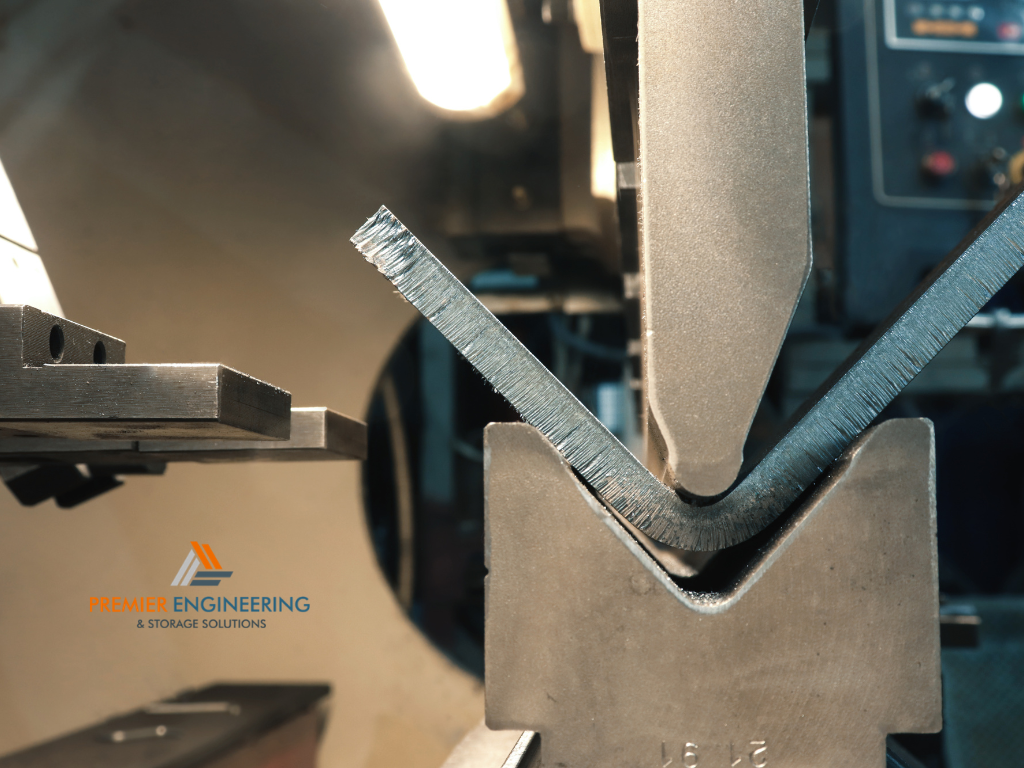

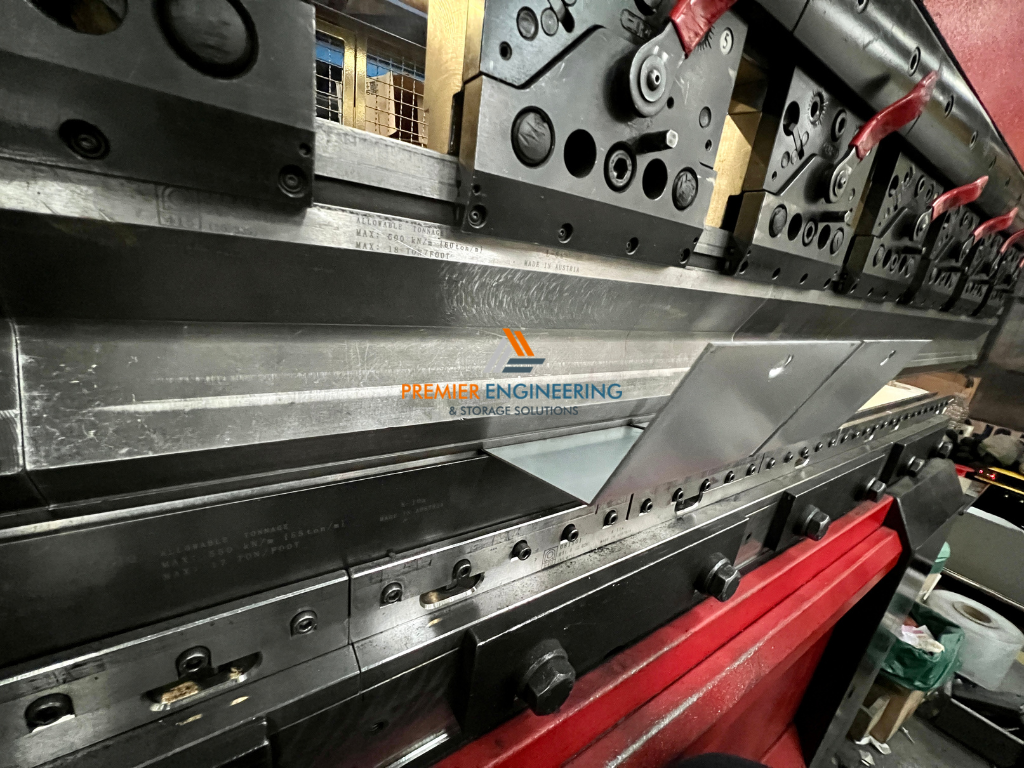

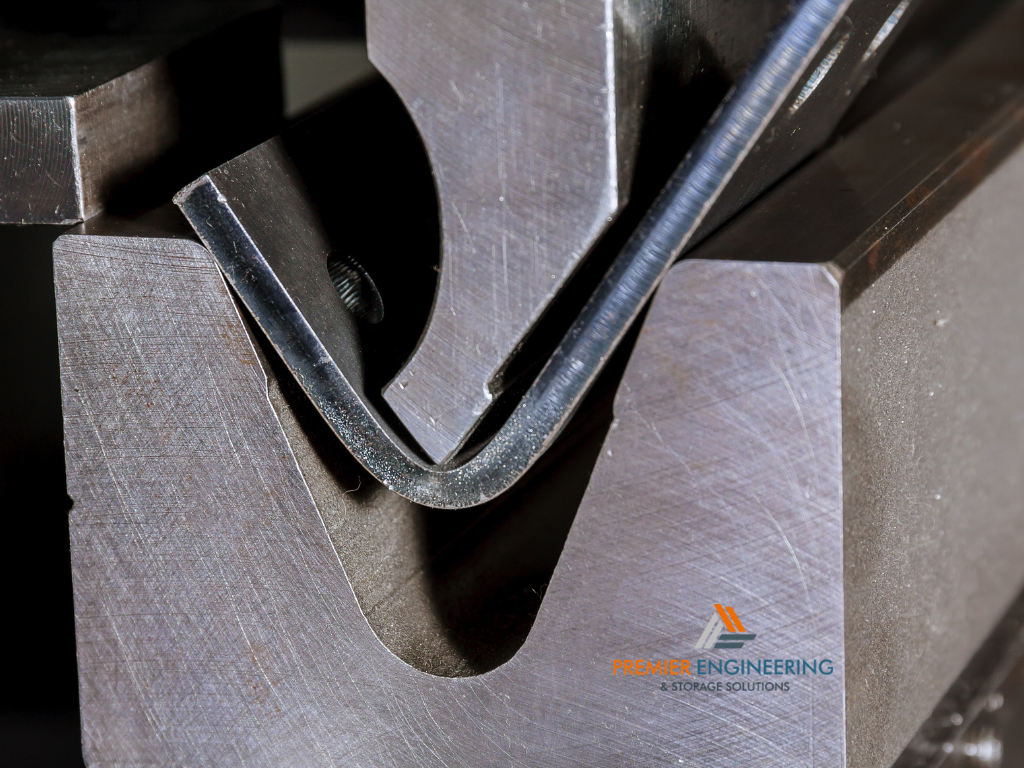

When a CNC Punching Service Works With a Metal Bending Press
A cnc punching service often prepares components that are later formed using a metal bending press.
When this is the case, bend lines and hole positions should be reviewed before punching.
Holes positioned too close to a bend may distort during forming.
The final dimensions of the folded component also depend on material thickness, bend radius and forming method.
These factors should therefore be incorporated into the flat-pattern design before the punching file is approved.
A coordinated approach between punching and bending is particularly useful for cabinets, brackets, enclosures and other formed sheet metal products.
It can also improve repeatability when the same part is manufactured regularly.
Decide Between One-Off and Production Run Ordering
A cnc punching service can support both prototypes and repeat manufacturing, but the best approach depends on what the customer is trying to achieve.
Quantity alone should not determine the process. Design complexity, tooling, material and downstream fabrication also matter.
When a CNC Punching Service Makes Sense for a Prototype
A cnc punching service can be useful for a prototype when the part contains features suited to available tooling.
Producing one or a small number of components first allows the customer to check fit, hole locations, clearances and overall design.
This can be especially valuable when the part will later be bent or assembled with other components.
If changes are required, the design file can be adjusted before larger quantities are produced.
Prototype production may have a higher cost per part because setup is spread across fewer units, but it can reduce the risk of producing a large batch with a design problem.
For new components, this verification stage can be worth considering before committing to ongoing production.
When a CNC Punching Service Suits Repeat Manufacturing
A cnc punching service is particularly well suited to repeat manufacturing when the same component is needed regularly.
Once the program, tooling and fabrication sequence are established, repeat production can become more straightforward.
Parts with standardised holes, slots and formed features can be produced consistently across multiple batches.
For businesses ordering enclosures, panels, brackets or other recurring sheet metal components, retaining a controlled drawing and revision number is important.
This helps ensure future batches are made to the correct specification.
The choice between one-off and production-run CNC punching ultimately comes down to how well the design suits the process and how often the component will be required.
For one-off work, buyers should consider whether the setup and tooling are justified. For repeat production, the ability to reuse programs, standard tools and established fabrication steps can make punching a practical manufacturing option.
When requesting a quote, provide the material, thickness, quantity, design file, critical tolerances and information about any bending or finishing required. This gives the supplier enough detail to assess whether cnc punching service, cnc cutting services or another fabrication method is the most suitable approach for the job.
